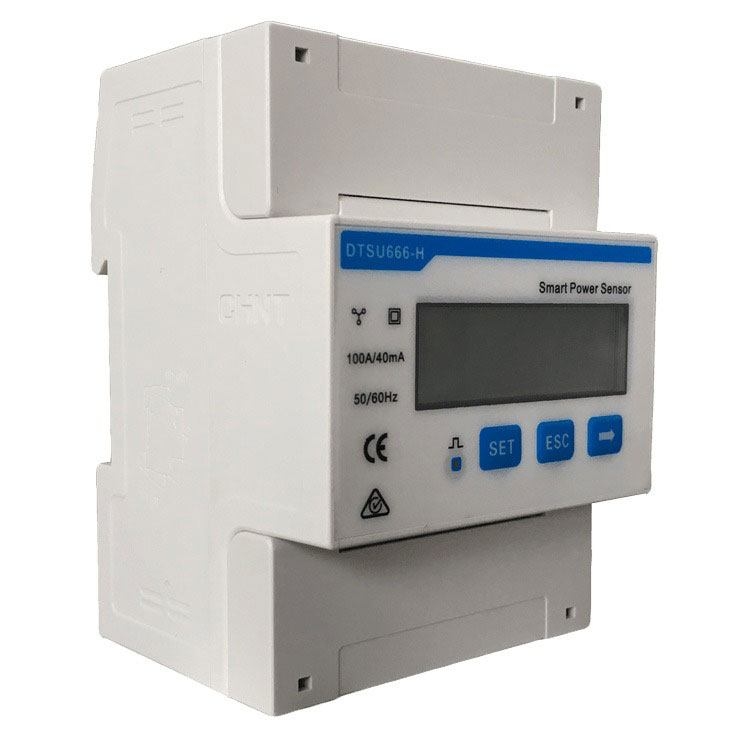

Huawei DTSU666-H 100A

Name: Huawei DTSU666-H 100A
SKU: DTSU_100A
Price: 151.51 EUR
Availability: InStock

151,51 €

5 kg Гаранция: 24 месеца

Поръчай с обаждане

Остави телефон. Ще уточним поръчката и доставката с теб.

Артикулен номер: DTSU_100A

Описание

Х-ка 1: Class 1 measurement accuracy; LCD display, easy to set and check; Overall power consumption <= 1 W
Х-ка 2: Power grid type: 3P4W, Input voltage (phase voltage): 176 Vac ~ 288 Vac, Power consumption: <= 1 W
Х-ка 3: Line voltage: 304 Vac ~ 499 Vac, Phase voltage: 176 Vac ~ 288 Vac, Current: 0 ~ 100 A
Х-ка 4: Measurement Accuracy: Voltage (±0.5 %), Current/Power/Energy (±1 %), Frequency (±0.01 Hz)
Х-ка 5: Interface: RS485, Baud rate: 9600 bps, Communication protocol: Modbus-RTU
Х-ка 6: Operating temperature range: -25 °C to 60 °C, Storage temperature range: -40 °C to 70 °C, Operating humidity: 5% RH - 95% RH (non-condensing)
Х-ка 7: Mounting type: DIN35 Rail; Dimension (H x W x D): 100 x 72 x 65.5 mm, Weight (including cables): 1.5 kg
Гаранция: 24 месеца

Гаранция	24 месеца
Х-ка 1	Class 1 measurement accuracy; LCD display, easy to set and check; Overall power consumption <= 1 W
Х-ка 2	Power grid type: 3P4W, Input voltage (phase voltage): 176 Vac ~ 288 Vac, Power consumption: <= 1 W
Х-ка 3	Line voltage: 304 Vac ~ 499 Vac, Phase voltage: 176 Vac ~ 288 Vac, Current: 0 ~ 100 A
Х-ка 4	Measurement Accuracy: Voltage (±0.5 %), Current/Power/Energy (±1 %), Frequency (±0.01 Hz)
Х-ка 5	Interface: RS485, Baud rate: 9600 bps, Communication protocol: Modbus-RTU
Х-ка 6	Operating temperature range: -25 °C to 60 °C, Storage temperature range: -40 °C to 70 °C, Operating humidity: 5% RH - 95% RH (non-condensing)
Х-ка 7	Mounting type: DIN35 Rail; Dimension (H x W x D): 100 x 72 x 65.5 mm, Weight (including cables): 1.5 kg

Все още няма публикувани отзиви.
